ECO BEAM ® Products & Specifications

ECO BEAM ®

ECO BEAM® comes in two gauges. A simple galvanised ECO BEAM® sleeve joins the beams.

Standard wall

DIMENSIONS 63mm x 37mm x 1.15mm thick, 10-metre lengths

MATERIAL G310 Z450 pre-galvanised high-strength steel

WEIGHT 1 bundle equals approximately 540kg

PACK QUANTITY 30 lengths

Heavy wall

DIMENSIONS 63mm x 37mm x 1.55mm thick, 10-metre lengths

MATERIAL G310 Z450 pre-galvanised high-strength steel

WEIGHT 1 bundle equals approximately 700kg

PACK QUANTITY 30 lengths

* Specific lengths can be manufactured on request

Joiners

DIMENSIONS 68mm x 43mm x 1.55/1.85mm thick, 400mm long

* Specific lengths can be manufactured on request

Post System

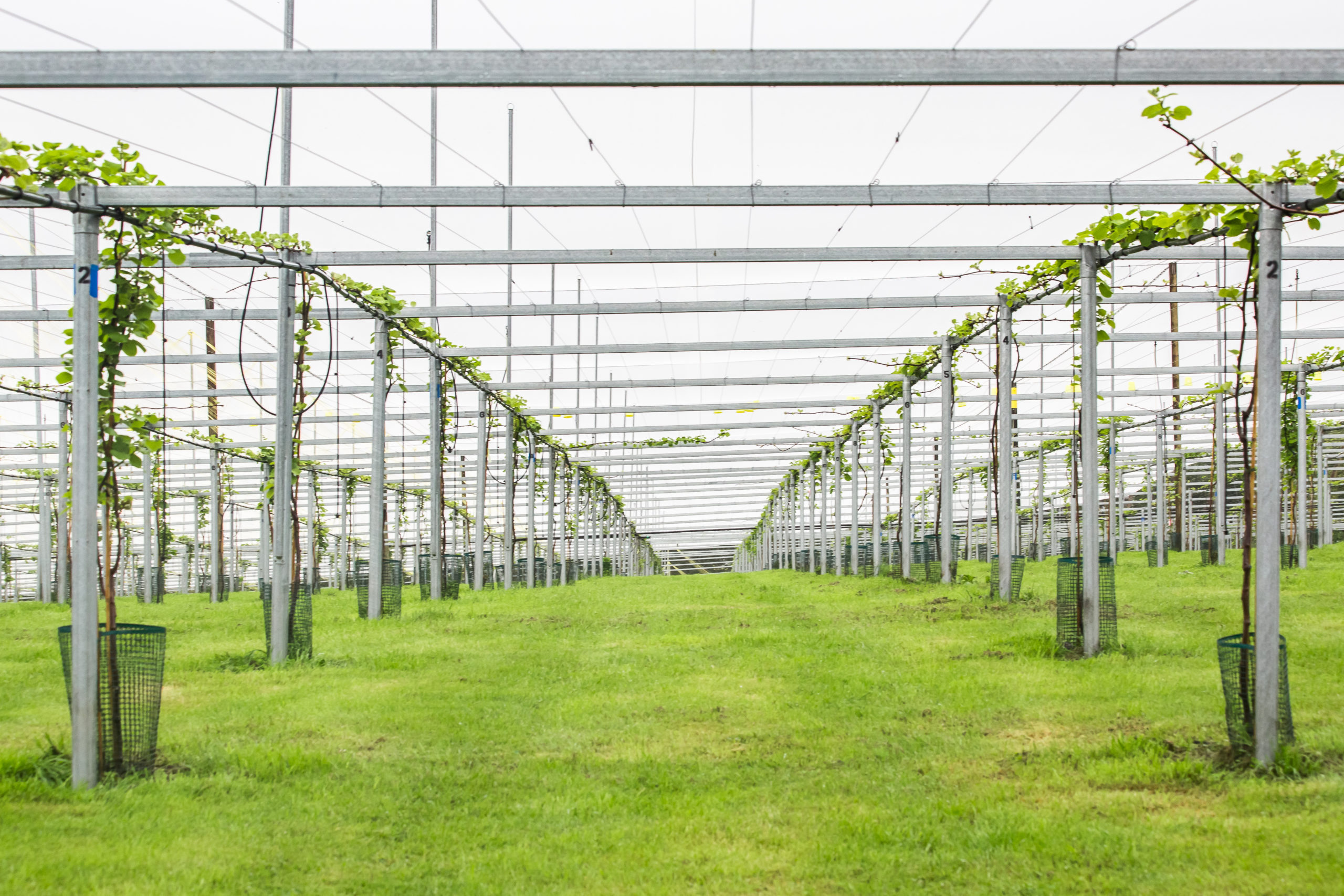

With the increase in sustainable horticulture practices, the steel galvanised post system supporting the ECO BEAM®, teepee and bracing products have become increasingly popular

A ground retention flange increases the surface area of the post to prevent sinking. Manufactured from long-lasting high-strength galvanised steel, the post system self-corrects in the event of scratching or marking.

DIMENSIONS Diameter 76.2mm x 1.55mm x 2.4 metres

MATERIAL G310 Z450 pre-galvanised high-strength steel

WEIGHT 14kg per assembly (two posts)

PACK QUANTITY 25 assemblies

Teepee System

The teepee system is designed to work with either wood or steel, as in the relevant kiwifruit pergola system.

The teepee adaptor is secured over the trellis with a screw, nail or similar anchor. The hooking system is wired up and placed inside the post.

The post is placed in the adaptor. A sleeve is available for use with differing ECO BEAM® or wooden beam widths.

DIMENSIONS Diameter 44.5mm x 3.5 metre post to be cut by the customer

MATERIAL G310 Z450 pre-galvanised high-strength steel

WEIGHT 3.8kg per post

PACK QUANTITY 10

Bracing

Used between the main posts and the end of the ECO BEAM®, the end bracing system supports the weight of increased vine growth outside the envelope of the pergola system. The galvanised steel stay is fixed in place by screw, bolt or nail, as relevant to the pergola construction.

End brace

DIMENSIONS Diameter 31.8 x 1.55mm thick, 1.3m, 1.5m or 1.8m long

MATERIAL G310 Z450 pre-galvanised high-strength steel

WEIGHT 1.4 kg

PACK QUANTITY 50 pieces
